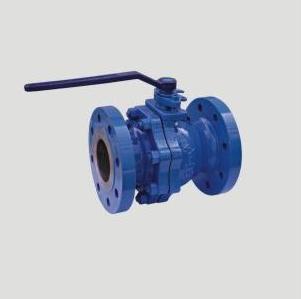

CLASS 150~600 Floating ball valve'>ball valve
Class 150～600
Design and Manufacture: API 6D, API 608 or BS5351
Face to Face Dimensions: ANSI B16.10
End Flange Dimensions: ANSI B16.5
Test: API 6D or API 598
Type of Connection:
RF and RTJ flange ends to ANSI B16.5 standard.
BW flange ends to ANSI B16.25 standard.
Type of Operation
Lever
Connection dimensions of Worm Gear actuator, Electric actuator, Pneumatic actuator to ISO 5211 standard.
Anti-static electricity constructions "AS" and Fire-safe constructions "FD"
Standard Material Specifications
|
NO. |
Part Name |
Carbon Steel to ASTM |
Stainless Steel to ASTM |
||||
|
WCB |
LCB |
CF8 |
CF8M |
CF3 |
CF3M |
||
|
1 |
Body |
A216 WCB |
A352 LCB |
A351 CF8 |
A351 CF8M |
A351 CF3 |
A351 CF3M |
|
2 |
Bonnet Nut |
A194 2H |
A194 4 |
A194 8 |
|||
|
3 |
Bonnet Bolt |
A193 B7 |
A320 L7 |
A193 B8 |
|||
|
4 |
Cap |
A216 WCB |
A352 LCB |
A351 CF8 |
A351 CF8M |
A351 CF3 |
A351 CF3M |
|
5 |
Gasket |
SS Spiral Wound/Graphite or SS Spiral Wound/PTFE |
|||||
|
6 |
Ball |
A105/Ep.Cr or F6 |
A182 F6 |
A351 CF8 |
A351 CF8M |
A351 CF3 |
A351 CF3M |
|
7 |
Seat Ring |
RPTFE or POM |
|||||
|
8 |
Small Spring |
Stainless Steel |
|||||
|
9 |
Small Ball |
A182 F304, A182 F316L |
|||||
|
10 |
Stem |
A182 F6 |
A182 F6 |
A182 F304 |
A182 F316 |
A182 F304L |
A182 F316L |
|
11 |
Stem Seat |
PTFE |
|||||
|
12 |
Stem Packing |
Graphite or PTFE |
|||||
|
13 |
Gland |
A182 F6 |
A182 F304 |
A182 F316 |
A182 F304L |
A182 F316L |
|
|
14 |
Gland Bolt |
A193 B7 |
A193 B8 |
||||
|
15 |
Gland Flange |
A216 WCB |
A351 CF8 |
||||
|
16 |
Positionling Plate |
Steel |
|||||
|
17 |
Wrench |
A216 WCB |
|||||
This material is according to ASTM standard.
Dimensions (mm) And Weights (kg)
|
Class |
DN |
mm |
15 |
20 |
25 |
40 |
50 |
65 |
80 |
100 |
150 |
200 |
250 |
|
NPS |
in |
1/2 |
3/4 |
1 |
1-1/2 |
2 |
2-1/2 |
3 |
4 |
6 |
8 |
10 |
|
|
150 |
L(RF) |
mm |
108 |
117 |
127 |
165 |
178 |
191 |
203 |
229 |
394 |
457 |
533 |
|
in |
4.25 |
4.6 |
5 |
6.5 |
7 |
7.5 |
8 |
9 |
15.5 |
18 |
21 |
||
|
L1(BW) |
mm |
140 |
152 |
165 |
190 |
216 |
241 |
283 |
305 |
457 |
521 |
559 |
|
|
in |
5.5 |
6 |
6.5 |
7.48 |
8.5 |
9.5 |
11.13 |
12 |
18 |
20.5 |
22 |
||
|
L2(RTJ) |
mm |
119 |
129.7 |
139.7 |
178 |
191 |
203 |
216 |
241 |
406 |
470 |
546 |
|
|
in |
4.69 |
5.11 |
5.5 |
6.9 |
7.5 |
8 |
8.5 |
9.5 |
16 |
18.5 |
21.5 |
||
|
H |
mm |
59 |
63 |
75 |
95 |
153 |
165 |
195 |
213 |
272 |
342 |
495 |
|
|
in |
2.3 |
2.5 |
2.95 |
3.74 |
6.02 |
6.5 |
7.68 |
8.39 |
10.7 |
13.5 |
19.5 |
||
|
Do(W) |
mm |
130 |
130 |
160 |
230 |
400 |
400 |
600 |
850 |
1100 |
1500 |
350* |
|
|
in |
5.1 |
5.1 |
6.3 |
9 |
15.74 |
15.74 |
23.62 |
33.46 |
43.3 |
59 |
13.8 |
||
|
WT(Kg) |
RF |
2.3 |
3 |
4.5 |
7 |
15 |
20 |
25 |
40 |
97 |
160 |
240 |
|
|
BW |
2.0 |
2.5 |
3.8 |
5.8 |
12 |
17 |
21 |
36 |
92.8 |
154 |
227 |
|
Class |
DN |
mm |
15 |
20 |
25 |
40 |
50 |
65 |
80 |
100 |
150 |
200 |
|
NPS |
in |
1/2 |
3/4 |
1 |
1-1/2 |
2 |
2-1/2 |
3 |
4 |
6 |
8 |
|
|
300 |
L(RF) |
mm |
140 |
152 |
165 |
190 |
216 |
241 |
283 |
305 |
403 |
502 |
|
in |
5.5 |
5.98 |
6.5 |
7.48 |
8.5 |
9.5 |
11.13 |
12 |
15.88 |
19.75 |
||
|
L1(BW) |
mm |
140 |
152 |
165 |
190 |
216 |
241 |
283 |
305 |
457 |
521 |
|
|
in |
5.5 |
5.98 |
6.5 |
7.48 |
8.5 |
9.5 |
11.13 |
12 |
18 |
20.5 |
||
|
L2(RTJ) |
mm |
151 |
164.7 |
177.7 |
202.7 |
232 |
257 |
298 |
321 |
419 |
518 |
|
|
in |
5.95 |
6.48 |
7 |
8 |
9.13 |
10.13 |
11.75 |
12.63 |
16.5 |
20.38 |
||
|
H |
mm |
59 |
63 |
75 |
107 |
153 |
165 |
195 |
213 |
272 |
342 |
|
|
in |
2.3 |
2.5 |
2.95 |
4.2 |
6.02 |
6.5 |
7.68 |
8.39 |
10.7 |
13.5 |
||
|
Do(W) |
mm |
130 |
130 |
160 |
230 |
400 |
400 |
600 |
850 |
1100 |
1500 |
|
|
in |
5.1 |
5.1 |
6.3 |
9 |
15.74 |
15.74 |
23.62 |
33.46 |
43.3 |
59 |
||
|
WT(Kg) |
RF |
2.5 |
3.5 |
5.5 |
10.5 |
20 |
25 |
31 |
52 |
118 |
200 |
|
|
BW |
2.1 |
3 |
4.8 |
8.7 |
17 |
22 |
28 |
48 |
105 |
185 |
