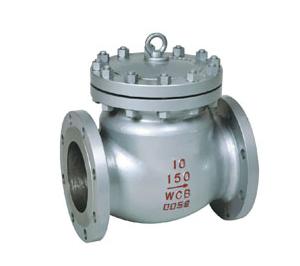

CLASS 150~1500 Swing ball valve
Class 150～1500, NPS 1/2～36"
Basic Design: ANSI B16.34, BS 1868
Face to Face Dimension: ANSI B16.10
Flanged Ends: 2～24” to ANSI B 16.5, >24” to MSS SP-44, to API 605 on request
B.W. Ends to ANSI B 16.25
Manufacturing to NACE MR-01-75 on request
Bolted Cover, Swing Type Disc, Threaded or Welded Seating Ring
Standard Material Specifications
|
NO. |
Part Name |
Carbon Steel to ASTM |
Alloy Steel to ASTM |
Stainless Steel to ASTM |
||||||
|
WCB |
LCB |
WC6 |
WC9 |
C5 |
CF8 |
CF8M |
CF3 |
CF3M |
||
|
1 |
Body |
A216 WCB |
A352 LCB |
A217 WC6 |
A217 WC9 |
A217 C5 |
A351 CF8 |
A351 CF8M |
A351 CF3 |
A351 CF3M |
|
2 |
Seat Ring |
A105 |
A350 LF2 |
A182 F11 |
A182 F22 |
A182 F5 |
A182 F304 |
A182 F316 |
A182 F304L |
A182 F316L |
|
3 |
Disc Nut |
　 |
A182 F304 |
A182 F304 |
A182 F316 |
A182 F304L |
A182 F316L |
|||
|
4 |
Disc Washer |
　 |
A182 F304 |
A182 F304 |
A182 F316 |
A182 F304L |
A182 F316L |
|||
|
5 |
Disc |
A216 WCB |
A352 LCB |
A217 WC6 |
A217 WC9 |
A217 C5 |
A351 CF8 |
A351 CF8M |
A351 CF3 |
A351 CF3M |
|
6 |
Hinge |
A216 WCB |
A352 LCB |
A217 WC6 |
A217 WC9 |
A217 C5 |
A351 CF8 |
A351 CF8M |
A351 CF3 |
A351 CF3M |
|
7 |
Hinge Pin |
　 |
A182 F304 |
A182 F304 |
A182 F316 |
A182 F304L |
A182 F316L |
|||
|
8 |
Yoke |
A216 WCB |
A352 LCB |
A217 WC6 |
A217 WC9 |
A217 C5 |
A351 CF8 |
A351 CF8M |
A351 CF3 |
A351 CF3M |
|
9 |
Bonnet Nut |
A194 2H |
A194 4 |
A194 7 |
A194 8 |
|||||
|
10 |
Bonnet Bolt |
A193 B7 |
A320 L7 |
A193 B16 |
A193 B8 |
|||||
|
11 |
Gasket |
SS Spiral Wound/Graphite or SS Spiral Wound/PTFE |
||||||||
|
12 |
Cover |
A216 WCB |
A352 LCB |
A217 WC6 |
A217 WC9 |
A217 C5 |
A351 CF8 |
A351 CF8M |
A351 CF3 |
A351 CF3M |
|
13 |
Hook Screw |
Steel |
||||||||
|
14 |
Nameplate |
Stainless Steel or Aluminum |
||||||||
|
15 |
Rivet |
Stainless Steel or Aluminum |
||||||||
Other materials (Alloy 20, AISI321, AISI347, Monel, Hastelloy, etc) are available on request
Trim Material to API 600
|
Seating |
Seat Ring |
Disc Seat |
Hinge Pin Part NO. 13 |
|
1 |
13Cr |
13Cr |
F6 |
|
2 |
304 |
304 |
F304 |
|
5 |
Stellite |
Stellite |
F6 |
|
8 |
Stellite |
13Cr |
F6 |
|
9 |
Monel |
Monel |
Monel |
|
10 |
316 |
316 |
F316 |
|
13 |
Alloy20 |
Alloy20 |
Alloy20 |
Test Pressure to API 598
|
Class |
Body Material |
Shell Test (Hydrostatic) |
Seat Test (Hydrostatic) |
Seat Test (Air) |
|
150 |
WCB |
450psi |
315psi |
80psi |
|
WC6 |
450psi |
319psi |
||
|
CF8M |
425psi |
303psi |
||
|
300 |
WCB |
1125psi |
814psi |
|
|
WC6 |
1125psi |
825psi |
||
|
CF8M |
1100psi |
792psi |
||
|
600 |
WCB |
2225psi |
1628psi |
|
|
WC6 |
2250psi |
1650psi |
||
|
CF8M |
2175psi |
1548psi |
||
|
900 |
WCB |
3350psi |
2442psi |
|
|
WC6 |
3375psi |
2475psi |
||
|
CF8M |
3250psi |
2376psi |
||
|
1500 |
WCB |
5575psi |
4078psi |
|
|
WC6 |
5625psi |
4125psi |
||
|
CF8M |
5400psi |
3960psi |
Dimensions (mm) And Weights (kg)
|
Class |
NPS |
in |
2 |
2-1/2 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
14 |
16 |
18 |
20 |
24 |
30 |
|
DN |
mm |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
450 |
500 |
600 |
750 |
|
|
300 |
L-L1(RF-BW) |
in |
10-1/2 |
11-1/2 |
12-1/2 |
14 |
15-3/4 |
17-1/2 |
21 |
24-1/2 |
28 |
33 |
34 |
38-1/2 |
40 |
53 |
62-3/4 |
|
mm |
267 |
292 |
318 |
356 |
400 |
444 |
533 |
622 |
711 |
838 |
864 |
978 |
1016 |
1346 |
1594 |
||
|
L2(RTJ) |
in |
11-1/8 |
12-1/8 |
13-1/8 |
14-5/8 |
16-3/8 |
18-1/8 |
21-5/8 |
25-1/8 |
28-5/8 |
33-5/8 |
34-5/8 |
39-1/8 |
40-3/4 |
53-7/8 |
63-3/4 |
|
|
mm |
283 |
308 |
333 |
371 |
416 |
460 |
549 |
638 |
727 |
854 |
879 |
994 |
1036 |
1368 |
1619 |
||
|
H |
in |
7-1/16 |
7-1/4 |
8-1/4 |
1058 |
13-9/16 |
14-3/16 |
14-9/16 |
15-1/8 |
17-5/16 |
20-7/16 |
21-13/16 |
23-1/4 |
24-3/16 |
27-15/16 |
34-1/16 |
|
|
mm |
180 |
185 |
210 |
270 |
345 |
360 |
370 |
385 |
440 |
520 |
554 |
590 |
614 |
614 |
866 |
||
|
WT(Kg) |
RF |
21 |
32 |
43 |
61 |
84 |
131 |
213 |
384 |
449 |
680 |
840 |
1025 |
1320 |
1960 |
3270 |
|
|
BW |
16 |
24 |
35 |
44 |
61 |
105 |
167 |
272 |
375 |
560 |
710 |
828 |
1070 |
1586 |
2830 |
|
Class |
NPS |
in |
2 |
2-1/2 |
3 |
4 |
6 |
8 |
10 |
12 |
14 |
16 |
18 |
20 |
24 |
|
DN |
mm |
50 |
65 |
80 |
100 |
150 |
200 |
250 |
300 |
350 |
400 |
450 |
500 |
600 |
|
|
600 |
L-L1(RF-BW) |
in |
11-1/2 |
13 |
14 |
17 |
22 |
26 |
31 |
33 |
35 |
39 |
43 |
47 |
55 |
|
mm |
292 |
330 |
356 |
432 |
559 |
660 |
787 |
838 |
889 |
991 |
1092 |
1194 |
1397 |
||
|
L2(RTJ) |
in |
11-5/8 |
13-1/8 |
14-1/8 |
17-1/8 |
22-1/8 |
26-1/8 |
31-1/8 |
33-1/8 |
35-1/8 |
39-1/8 |
43-1/8 |
47-1/4 |
55-3/8 |
|
|
mm |
295 |
333 |
359 |
435 |
562 |
664 |
791 |
841 |
892 |
994 |
1095 |
1200 |
1407 |
||
|
H |
in |
7-3/4 |
8-1/8 |
9-1/8 |
11-1/16 |
14-1/4 |
17-3/16 |
19-5/16 |
20-3/4 |
22-1/2 |
26 |
28-3/8 |
29-3/8 |
37-13/16 |
|
|
mm |
197 |
207 |
231 |
281 |
362 |
437 |
490 |
528 |
572 |
660 |
720 |
746 |
960 |
||
|
WT(Kg) |
RF |
36 |
49 |
68 |
