Class 150～1500, NPS 1/2～36"
Basic Design: ANSI B16.34, BS 1868
Face to Face Dimension: ANSI B16.10
Flanged Ends: 2～24” to ANSI B 16.5, >24” to MSS SP-44, to API 605 on request
B.W. Ends to ANSI B 16.25
Manufacturing to NACE MR-01-75 on request

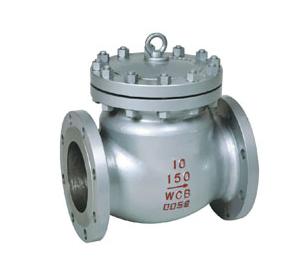

Bolted Cover, Swing Type Disc, Threaded or Welded Seating Ring
|
|
|
Standard Material Specifications
|
NO.
|
Part Name
|
Carbon Steel to ASTM
|
Alloy Steel to ASTM
|
Stainless Steel to ASTM
|
|
WCB
|
LCB
|
WC6
|
WC9
|
C5
|
CF8
|
CF8M
|
CF3
|
CF3M
|
|
1
|
Body
|
A216 WCB
|
A352 LCB
|
A217 WC6
|
A217 WC9
|
A217 C5
|
A351 CF8
|
A351 CF8M
|
A351 CF3
|
A351 CF3M
|
|
2
|
Seat Ring
|
A105
|
A350 LF2
|
A182 F11
|
A182 F22
|
A182 F5
|
A182 F304
|
A182 F316
|
A182 F304L
|
A182 F316L
|
|
3
|
Disc Nut
|
　
|
A182 F304
|
A182 F304
|
A182 F316
|
A182 F304L
|
A182 F316L
|
|
4
|
Disc Washer
|
　
|
A182 F304
|
A182 F304
|
A182 F316
|
A182 F304L
|
A182 F316L
|
|
5
|
Disc
|
A216 WCB
|
A352 LCB
|
A217 WC6
|
A217 WC9
|
A217 C5
|
A351 CF8
|
A351 CF8M
|
A351 CF3
|
A351 CF3M
|
|
6
|
Hinge
|
A216 WCB
|
A352 LCB
|
A217 WC6
|
A217 WC9
|
A217 C5
|
A351 CF8
|
A351 CF8M
|
A351 CF3
|
A351 CF3M
|
|
7
|
Hinge Pin
|
　
|
A182 F304
|
A182 F304
|
A182 F316
|
A182 F304L
|
A182 F316L
|
|
8
|
Yoke
|
A216 WCB
|
A352 LCB
|
A217 WC6
|
A217 WC9
|
A217 C5
|
A351 CF8
|
A351 CF8M
|
A351 CF3
|
A351 CF3M
|
|
9
|
Bonnet Nut
|
A194 2H
|
A194 4
|
A194 7
|
A194 8
|
|
10
|
Bonnet Bolt
|
A193 B7
|
A320 L7
|
A193 B16
|
A193 B8
|
|
11
|
Gasket
|
SS Spiral Wound/Graphite or SS Spiral Wound/PTFE
|
|
12
|
Cover
|
A216 WCB
|
A352 LCB
|
A217 WC6
|
A217 WC9
|
A217 C5
|
A351 CF8
|
A351 CF8M
|
A351 CF3
|
A351 CF3M
|
|
13
|
Hook Screw
|
Steel
|
|
14
|
Nameplate
|
Stainless Steel or Aluminum
|
|
15
|
Rivet
|
Stainless Steel or Aluminum
|
Other materials (Alloy 20, AISI321, AISI347, Monel, Hastelloy, etc) are available on request
Trim Material to API 600
|
Seating
Code
|
Seat Ring
Surface
Part NO. 2
|
Disc Seat
Part NO. 3
|
Hinge Pin Part NO. 13
|
|
1
|
13Cr
|
13Cr
|
F6
|
|
2
|
304
|
304
|
F304
|
|
5
|
Stellite
|
Stellite
|
F6
|
|
8
|
Stellite
|
13Cr
|
F6
|
|
9
|
Monel
|
Monel
|
Monel
|
|
10
|
316
|
316
|
F316
|
|
13
|
Alloy20
|
Alloy20
|
Alloy20
|
Test Pressure to API 598
|
Class
|
Body Material
|
Shell Test (Hydrostatic)
|
Seat Test (Hydrostatic)
|
Seat Test (Air)
|
|
150
|
WCB
|
450psi
|
315psi
|
80psi
|
|
WC6
|
450psi
|
319psi
|
|
CF8M
|
425psi
|
303psi
|
|
300
|
WCB
|
1125psi
|
814psi
|
|
WC6
|
1125psi
|
825psi
|
|
CF8M
|
1100psi
|
792psi
|
|
600
|
WCB
|
2225psi
|
1628psi
|
|
WC6
|
2250psi
|
1650psi
|
|
CF8M
|
2175psi
|
1548psi
|
|
900
|
WCB
|
3350psi
|
2442psi
|
|
WC6
|
3375psi
|
2475psi
|
|
CF8M
|
3250psi
|
2376psi
|
|
1500
|
WCB
|
5575psi
|
4078psi
|
|
WC6
|
5625psi
|
4125psi
|
|
CF8M
|
5400psi
|
3960psi
|
Dimensions (mm) And Weights (kg)
|
Class
|
NPS
|
in
|
2
|
2-1/2
|
3
|
4
|
5
|
6
|
8
|
10
|
12
|
14
|
16
|
18
|
20
|
24
|
30
|
|
DN
|
mm
|
50
|
65
|
80
|
100
|
125
|
150
|
200
|
250
|
300
|
350
|
400
|
450
|
500
|
600
|
750
|
|
300
|
L-L1(RF-BW)
|
in
|
10-1/2
|
11-1/2
|
12-1/2
|
14
|
15-3/4
|
17-1/2
|
21
|
24-1/2
|
28
|
33
|
34
|
38-1/2
|
40
|
53
|
62-3/4
|
|
mm
|
267
|
292
|
318
|
356
|
400
|
444
|
533
|
622
|
711
|
838
|
864
|
978
|
1016
|
1346
|
1594
|
|
L2(RTJ)
|
in
|
11-1/8
|
12-1/8
|
13-1/8
|
14-5/8
|
16-3/8
|
18-1/8
|
21-5/8
|
25-1/8
|
28-5/8
|
33-5/8
|
34-5/8
|
39-1/8
|
40-3/4
|
53-7/8
|
63-3/4
|
|
mm
|
283
|
308
|
333
|
371
|
416
|
460
|
549
|
638
|
727
|
854
|
879
|
994
|
1036
|
1368
|
1619
|
|
H
|
in
|
7-1/16
|
7-1/4
|
8-1/4
|
1058
|
13-9/16
|
14-3/16
|
14-9/16
|
15-1/8
|
17-5/16
|
20-7/16
|
21-13/16
|
23-1/4
|
24-3/16
|
27-15/16
|
34-1/16
|
|
mm
|
180
|
185
|
210
|
270
|
345
|
360
|
370
|
385
|
440
|
520
|
554
|
590
|
614
|
614
|
866
|
|
WT(Kg)
|
RF
|
21
|
32
|
43
|
61
|
84
|
131
|
213
|
384
|
449
|
680
|
840
|
1025
|
1320
|
1960
|
3270
|
|
BW
|
16
|
24
|
35
|
44
|
61
|
105
|
167
|
|
