Class 800 Y-Pattern Piston ball valve
Standard Material Specifications
| NO. | Part Name | CS to ASTM | AS to ASTM | SS to ASTM | |
| Type A105 | Type F22 | Type F304(L) | Type F316(L) | ||
| 1 | Body | A105 | A182 F22 | A182 F304(L) | A182 F316(L) |
| 2 | Piston Disc | A276 420 | A276 304 | A276 304(L) | A276 316(L) |
| 3 | Bonnet | A105 | A182 F22 | A182 F304(L) | A182 F316(L) |
| 4 | Nameplate | SS | |||
| Suitable Medium | W.O.G. etc | W.O.G. etc | HNO3,CH3OOH etc | ||
| Suitable Temperature | -29℃~425℃ | -29℃~550℃ | -29℃~180℃ | ||
Note: Other materials are available upon request.

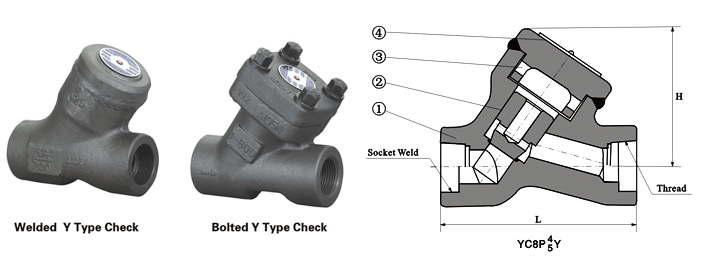

Dimensions(mm) And Weights(kg)
| NPS (in) | Reduced | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | |
| Full | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | ||
| L | 98 | 98 | 110 | 120 | 140 | 140 | 170 | 200 | |
| H(OPEN) | 85 | 85 | 95 | 105 | 114 | 114 | 132 | 145 | |
| Weights | 3.1 | 3.0 | 3.7 | 6.5 | 8.5 | 8.0 | 10.9 | 12.5 | |
