CLASS 150~1500 Cast Steel globe valve

Class 150～1500Lbs, NPS 2～12"
Type: Through way, Y-Globe and Angle Type
Basic Design: ANSI B16.34, BS1873
Face to Face Dimension: ANSI B 16.10
Flanged Ends to ANSI B 16.5
B.W. Ends to ANSI B 16.25
Manufacturing to NACE MR-01-75 on request

OS&Y, Rising Stem, Plug Type Disc Bolted Bonnet, Threaded Seat Ring

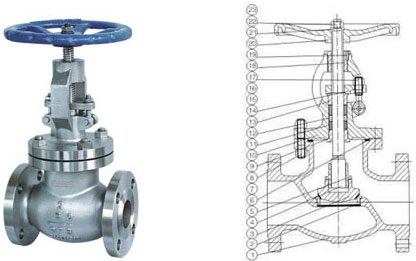

Standard Material Specifications

NO.	Part Name	Carbon Steel to ASTM		Alloy Steel to ASTM			Stainless Steel to ASTM
NO.	Part Name	WCB	LCB	WC6	WC9	C5	CF8	CF8M	CF3	CF3M
1	Body	A216 WCB	A352 LCB	A217 WC6	A217 WC9	A217 C5	A351 CF8	A351 CF8M	A351 CF3	A351 CF3M
2	Seat Ring	A105	A350 LF2	A182 F11	A182 F22	A182 F5	A182 F304	A182 F316	A182 F304L	A182 F316L
3	Disc	A105	A350 LF2	A182 F11	A182 F22	A182 F5	A182 F304	A182 F316	A182 F304L	A182 F316L
4	Stem	A182 F6	A182 F6	A182 F304			A182 F304	A182 F316	A182 F304L	A182 F316L
5	Disc Nut	A182 F6	A182 F6	A182 F304			A182 F304	A182 F316	A182 F304L	A182 F316L
6	Gasket	SS Spiral Wound/Graphite or SS Spiral Wound/PTFE
7	Bonnet Nut	A194 2H	A194 4	A194 7			A194 8
8	Bonnet Bolt	A193 B7	A320 L7	A193 B16			A193 B8
9	Backseat Bushing	A182 F6	A182 F6	A182 F304			A182 F304	A182 F316	A182 F304L	A182 F316L
10	Bonnet	A216 WCB	A352 LCB	A217 WC6	A217 WC9	A217 C5	A351 CF8	A351 CF8M	A351 CF3	A351 CF3M
11	Lantern	A182 F6	A182 F6	A182 F304			A182 F304	A182 F316	A182 F304L	A182 F316L
12	Stem Packing	Graphite or PTFE
13	Gland	A182 F6					A182 F304	A182 F316	A182 F304L	A182 F316L
14	Gland Flange	A216 WCB					A351 CF8
15	Gland Nut	A194 2H					A194 8
16	Gland Eyebolt	A194 B7					A193 B8
17	Pin	Carbon Steel or Stainless Steel
18	Stem Nut	A439 D2 or B148-952A
19	Screw	Carbon Steel
20	Hand Wheel	Ductile Iron or Carbon Steel
21	Nameplate	Stainless Steel or Aluminum
22	Washer	Carbon Steel
23	Nut	Carbon Steel or Stainless Steel

Other materials (Alloy 20, AISI321, AISI347, Monel, Hastelloy, etc) are available on request

Trim Material to API 600

Seating Code	Seat Ring Surface Part NO. 2	Disc Seat Part NO. 3	Stem Part NO. 4	Backseat Bushing Part NO. 9
1	13Cr	13Cr	F6	F6
2	304	304	F304	F304
5	Stellite	Stellite	F6	F6
8	Stellite	13Cr	F6	F6
9	Monel	Monel	Monel	Monel
10	316	316	F316	F316
13	Alloy20	Alloy20	Alloy20	Alloy20

Test Pressure to API 598

Class	Body Material	Shell Test (Hydrostatic)	Seat Test (Hydrostatic)	Seat Test (Air)
150	WCB	450psi	315psi	80psi
	WC6	450psi	319psi
	CF8M	425psi	303psi
300	WCB	1125psi	814psi
	WC6	1125psi	825psi
	CF8M	1100psi	792psi
600	WCB	2225psi	1628psi
	WC6	2250psi	1650psi
	CF8M	2175psi	1548psi
900	WCB	3350psi	2442psi
	WC6	3375psi	2475psi
	CF8M	3250psi	2376psi
1500	WCB	5575psi	4078psi
	WC6	5625psi	4125psi
	CF8M	5400psi	3960psi

Dimensions (mm) And Weights (kg)

Class	NPS	in	2	2-1/2	3	4	5	6	8	10	12
Class	DN	mm	50	65	80	100	125	150	200	250	300
150	L-L1 (RF-BW)	in	8	8-1/2	9-1/2	11-1/2	14	16	19-1/2	24-1/2	27-1/2
	L-L1 (RF-BW)	mm	203	216	241	292	356	406	495	622	698
	L2 (RTJ)	in	8-1/2	9	10	12	14-1/2	16-1/2	20	25	28
	L2 (RTJ)	mm	216	229	254	305	368	419	508	635	711
	L3	mm	102	108	121	146	178	203	248	311	349
	H (OPEN)	in	14-11/16	15-3/8	16-9/16	20-1/4	21-3/16	22-5/16	24-5/8	28	39
	H (OPEN)	mm	373	390	421	515	538	567	626	712	990
	W	in	7-7/8	9-7/8	9-7/8	11-13/16	11-13/16	13-3/4	15-3/4	17-3/4	24
	W	mm	200	250	250	300	300	350	400 Previous: -PN16~40-DIN-Globe-Valve-F1-Series- Next: Class-150~1500-Bellow-Sealed-Globe-Valve Related Products Home \| About Us \| Products \| Quality \| News & Article \| Service \| Contact Us \| Useful Links © 2013 SIEMPU Corporation. All rights reserved. English German Spanish French Italian Portuguese Japanese Korean Arabic Russian Tel: +86-574-8720 0715 / 8781 3520 Fax: +86-574-8386 6606 / 5670 8316 Mail: sales@siempu.com Water purifier \| Reverse Osmosis Water filter \| Countertop Water Filter \| Undersink Water Filter \| Water Filter Cartridge \| Water Faucet \| Water Filter Housing \| Water Filter Accessories \| Gate Valve \| Globe Valve \| Ball Valve \| Butterfly Valve \| Check Valve \| Silicone Kitchenware \| Silicone Bakeware \| Silicone Spatula \| Silicone Brush \| Silicone Ice Cube Tray \| Silicone Cake Mould \| Silicone Gadget Baking Glove \| Silicone Mat \| Silicone Trivet \| Microfiber Cleaning products \| Non-woven Duster \| Car Care \| Microfiber Mop \| Microfiber Towel \| Floor Squeegee \| Window Squeegee \| Microfiber Cleaning Cloth \| Sponge Pad \| Chenille Mat \| Wash mitt \| HotVsNot-best web directories \| Got links \| suppliers
