Class 150~1500 Bellow Sealed Globe Valve
Class 150~1500 Bellow Sealed Globe Valve
Product Description

Class 150~1500 Bellow Sealed globe valve


Standard Material Specifications

NO. Part Name CS to ASTM AS to ASTM SS to ASTM
Type A105 Type F22 Type F304(L) Type F316(L)
1 Body A105 A182 F22 A182 F304(L) A182 F316(L)
2 Seat A276 420 A276 304 A276 304(L) A276 316(L)
3 Stem A182 F6 A182 F304 A182 F304(L) A182 F316(L)
  Bellow SS
4 Gasket 316+Flexible Graphite 316+PTFE
5 Bonnet A105 A182 F22 A182 F304(L) A182 F316(L)
6 Bolt A193 B7 A193 B16 A193 B8 A193 B8M
7 Packing Flexible Graphite PTFE
8 Gland A276 420 A182 F304
10 Gland Flange A216 WCB A351 CF8
12 Stem Nut A276 420
  Hand wheel A197
13 H.W. Lock Nut A194 2H A194 4 A194 8 A194 8M
  Pin A276 420 A182 F304
14 Name plate A197
Suitable Medium W.O.G. etc W.O.G. etc HNO3,CH3OOH etc
Suitable Temperature -29℃~425℃ -29℃~550℃ -29℃~180℃

Note: Other materials are available upon request.

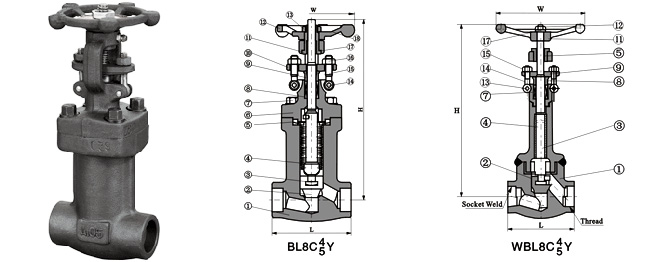

Dimensions(mm) And Weights(kg)

NPS (in)
Reduced
3/8"
1/2"
3/4"
1"
11/4"
11/2"
2"
Full

3/8"
1/2"
3/4"
1"
11/4"
11/2"
L1
79
79
92
111
120
120
140
L
79
79
92
111
120
152
172
H(open)
220
220
225
244
321
321
347
W
100
100
100
125
160
160
180
Weights
Bolted
3.2
3.0
4.8
7.9
11.0
16.8
25.2
Welded
3.0
2.8
4.8
7.0
9.6
13.5
20.25
